MCB BOX

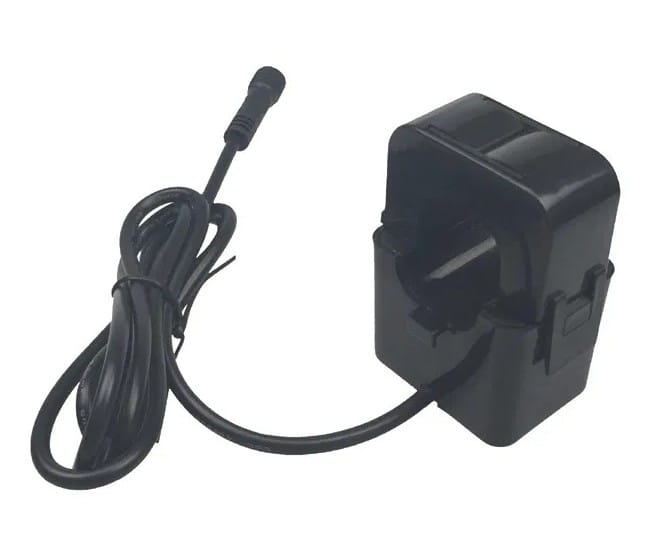

1. CURRENT TRANSFORMER (C&T)

Current Transformer

CT sensors provide continuous monitoring of the electrical current generated by solar panels. This real-time data enables immediate adjustments to optimize energy production and consumption. As a result, it ensures that the system operates at peak efficiency.

CTs work:-
  1. CT clamps measure the current flowing through a conductor without directly connecting to it.
  2. CTs provide real-time data on energy production and consumption.
  3. CTs help ensure that the system operates at peak efficiency.

2. ELMEX

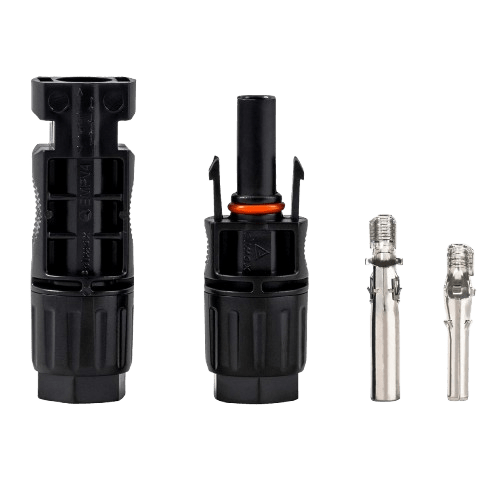

Elmex MC4 Straight Male and Female Connector (Pack of 10) for Solar Panels

Elmex has developed Solar Straight connector with plug and socket design suitable for 2.5, 4.0 & 6.0 sq.mm size cables and are constructed using flame retardant engineering thermoplastic suitable for photovoltaic application and exposure to UV rays. Elmex straight connectors incorporate a flexible watertight seal and are supplied as male (Plug) and female (Socket) types to minimize the chance of wrong connections.

Features:-
  1. TUV Certified
  2. Snap Fit locking Arrangement
  3. IP 68 Protection when mated
  4. Low Contact Resistance
  5. Provides UV Protection (Tested for 500 hrs as per ISO 4892-2)
  6. Tested as per International Standards /IEC 62852

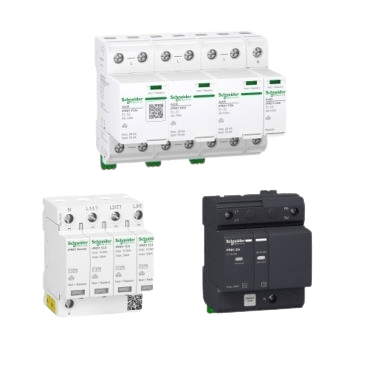

3. SCIHENDER SPD

Modular Surge Arrester: iPRF1 12,5r & PRD1

Type 1 Low Voltage Surge Protection Devices. Maximum discharge current 8 to 65 kA. Acti Surge Protection Devices - SPDs

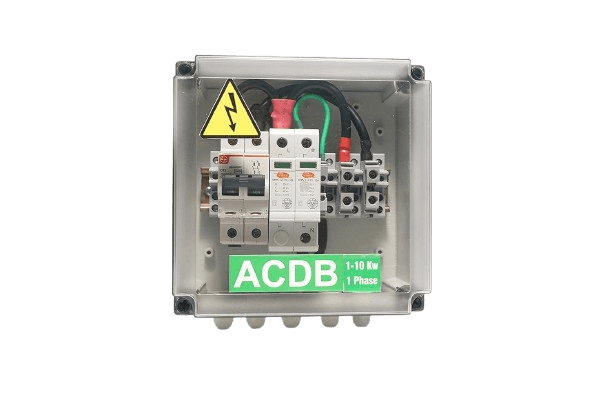

4. ACDB(Alternating Current Distribution Box)

ACDB stands for Alternating Current Distribution Box.

Solar AC Distribution Board is the panel used between solar Inverter and Load to provide overload and short circuit protection. Normally these panels have one power input controlled by MCB, MCCB or Fuse multiple load feeders that use energy meter to live total load consumption.

Features:-
  1. Electricity Conversion
  2. Safety Features
  3. Performance Optimization
  4. System Flexibility
  5. Seamless Integration
  6. Durability and Resilience
  7. Enhanced Safety

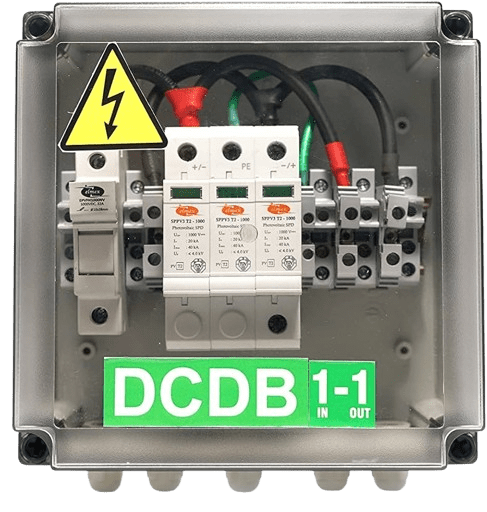

5. DCDB(Direct Current Distribution Board)

DCDB stands for Direct Current Distribution Board

ACDB (Alternating Current Distribution Box) and DCDB (Direct Current Distribution Box) are essential components in a solar power plant. They serve different functions in the solar energy system and are necessary to ensure the safe and efficient operation of the plant.

Features:-
  1. DC Power Distribution
  2. Protection
  3. Monitoring
  4. Connection Points
  5. Safety
  6. Efficiency
  7. System Organization
  8. Scalability
